Adding a TLS certificate to Azure Application Gateway

Overview​

When you expose a new hostname through Azure Application Gateway (App Gateway), you must attach a valid TLS certificate. This guide walks you through adding a certificate stored in Azure Key Vault and wiring it to App Gateway, plus how to enable alerting if renewals fail.

How-To​

Creating a new TLS Certificate​

If you still need the certificate and its automatic renewal pipeline, see Creating a new TLS Certificate.

Creating or Configuring the KeyVault​

If you already have a Key Vault, skip to the next section. Otherwise, create a new KeyVault with the following characteristics:

resource "azurerm_key_vault" "this" {
  ...

  enable_rbac_authorization     = true
  enabled_for_disk_encryption   = true
  soft_delete_retention_days    = 30
  purge_protection_enabled      = true
  # TODO: when pipeliens will be moved to GitHub, set this to false. Ref: creating-tls-cert.md##how-to-create-a-new-tls-certificate
  public_network_access_enabled = true

  network_acls {
    bypass         = "AzureServices"
    default_action = "Allow" #tfsec:ignore:AZU020
  }
}

# private endpoint
resource "azurerm_private_endpoint" "this" {
  ...

  private_service_connection {
    ...
    private_connection_resource_id = azurerm_key_vault.this.id
    is_manual_connection           = false
    subresource_names              = ["vault"]
  }

  private_dns_zone_group {
    name                 = "private-dns-zone-group"
    private_dns_zone_ids = [var.private_dns_zone_id]
  }
}

Setting up IAM roles​

App Gateway must be able to read the certificate from Key Vault. Ensure the User‑assigned managed identity attached to your App Gateway has the Key Vault Secrets User role on the Key Vault scope. You can assign it via Terraform, for example:

module "iam_tlscert_kv_admins" {
  source  = "pagopa-dx/azure-role-assignments/azurerm"
  version = "~> 1.2"

  subscription_id = var.subscription_id
  principal_id    = # the principal ID of the User-assigned managed identity associated within the Application Gateway

  key_vault = [{
    name                = azurerm_key_vault.tlscert_itn_01.name
    resource_group_name = azurerm_key_vault.tlscert_itn_01.resource_group_name
    has_rbac_support    = # true or false depending on the chosen KeyVault access model
    description         = "Allows Application Gateway to read certificates from the KeyVault"
    roles = {
      secrets      = "reader"
    }
  }]
}

If your KeyVault uses RBAC and the certificate already exists, add it to App Gateway with Az PowerShell:

note

If you don't have PowerShell installed, you can use the Azure Cloud Shell through the Azure Portal


Connect-AzAccount -SubscriptionName "<subscription-name>"

# Get the Application Gateway we want to modify
$appgw = Get-AzApplicationGateway -Name "<appgw-name>" -ResourceGroupName "<appgwp-rg>"

# For each certificate
$secret = Get-AzKeyVaultSecret -VaultName "<kv-name>" -Name "<certificate-name>"

# Build a versionless secret ID so App Gateway will always use the latest version
$secretUri = $secret.Id -replace ":443", ""
$secretId  = $secretUri.Substring(0, $secretUri.LastIndexOf('/'))

# To verify the secret version is correct, its value should be like:
echo $secretId
# https://<kv-name>.vault.azure.net/secrets/<certificate-name>

# Specify the secret ID from Key Vault
Add-AzApplicationGatewaySslCertificate -KeyVaultSecretId $secretId -ApplicationGateway $appgw -Name $secret.Name

# You can remove an existing certificate with:
# Remove-AzApplicationGatewaySslCertificate -Name "<cert-name>" -ApplicationGateway $appgw

# Commit the pending changes to the Application Gateway
Set-AzApplicationGateway -ApplicationGateway $appgw

To validate the operation, associate the certificate to an HTTPS listener, and verify via the Azure Portal that certificate information such as expiration date, are available on the Listener TLS certificates pane.

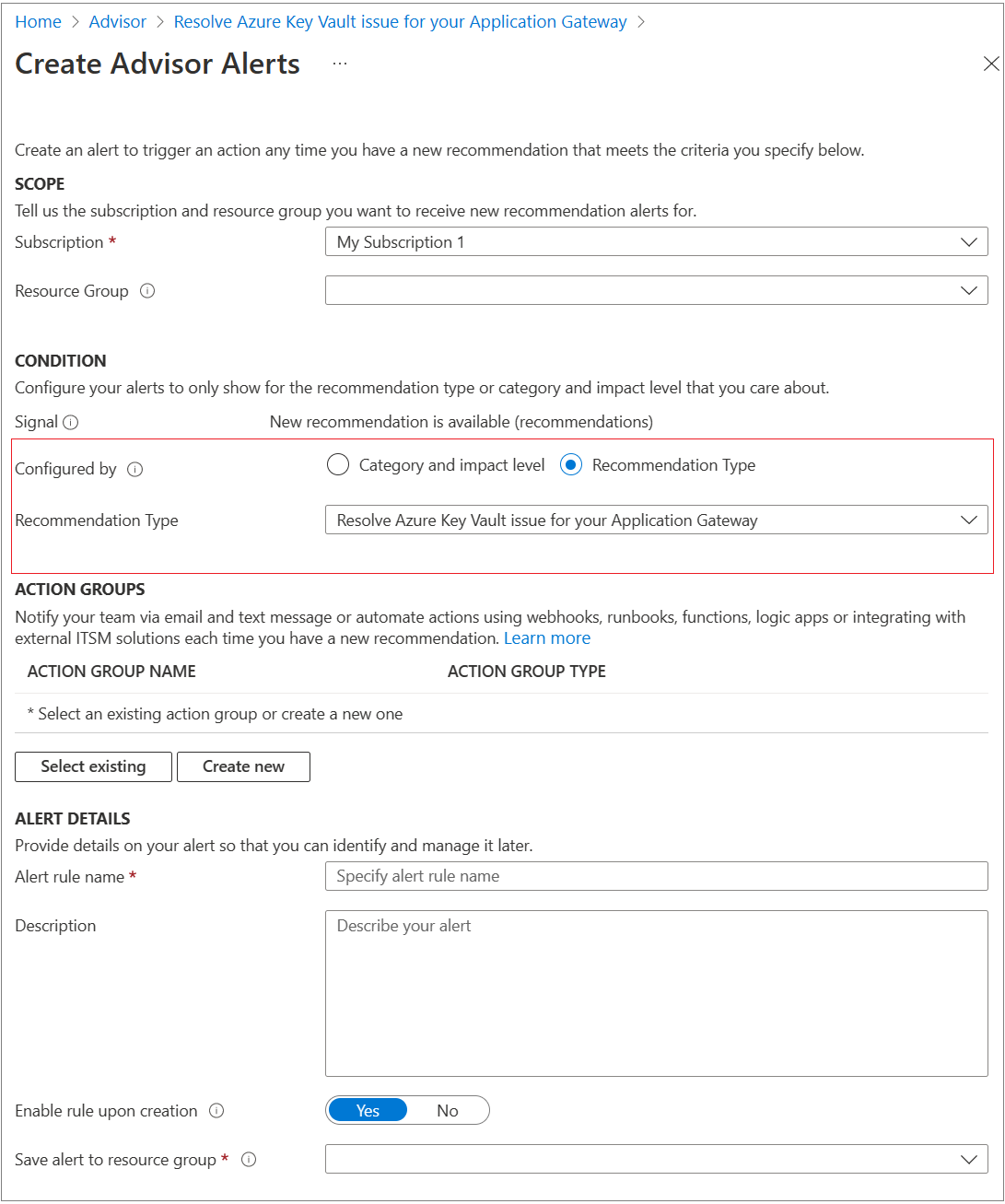

Setting up Alerting for Certificate Rotation Failures​

Application Gateway logs any error and is integrated with Azure Advisor to surface any misconfiguration with a recommendation for its fix. To turning on alerts:

  • Open Advisor in the Azure portal
  • Select Alerts from the left menu.
  • In Configured By, select Recommendation Type
  • Select "Resolve Azure Key Vault issue for your Application Gateway" in the recommendation type
  • Select your action group or create a new one

azure advisor
